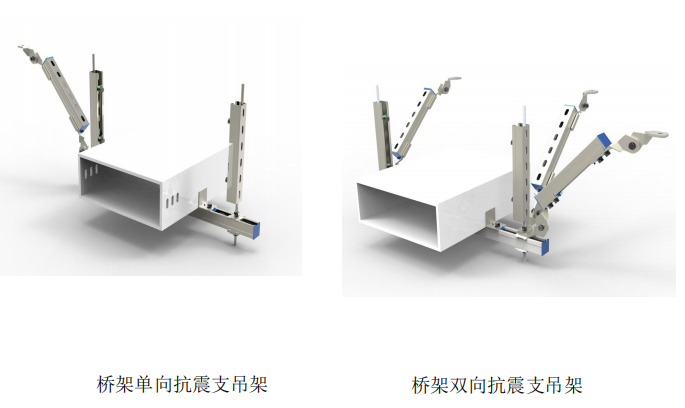

This product uses a seismic intensity of 6 to 9 degrees, the product is assembled from 41 * 41 * 2.0 U-shaped channel steel and various accessories, U-shaped channel steel and fully threaded boom can be cut according to the actual size of the site, and other accessories are finished accessories, without secondary processing.
Product Information
Product features: 1. Convenient and fast construction;
2．Excellent compressive and tensile strength, good anti-corrosion and fire resistance.
Scope of application:1. concrete structures;
2. Strong and weak current system.
Available Materials:1. Cold galvanized material;
2. Hot-dip galvanized material.
Design scope: for electrical piping with an inner diameter greater than or equal to 60mm and cable ladders, cable trough boxes, and busways with a gravity greater than or equal to 150N/m.
Executive standard: Code for Seismic Design of Building Mechanical and Electrical Engineering (GB50981-2014)
