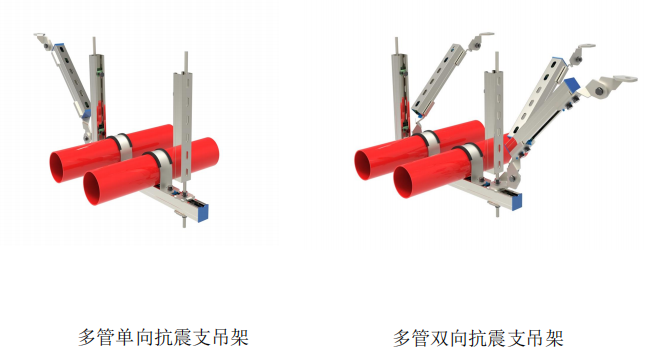

Multi-tube Single, Two-way Seismic Support And Hanger

This product uses a seismic intensity of 6 to 9 degrees, the product is assembled from 41 * 41 * 2.0 U-shaped channel steel and various accessories, U-shaped channel steel and fully threaded boom can be cut according to the actual size of the site, and other accessories are finished accessories, without secondary processing.

Product Information

Product features: 1. Convenient and fast construction;

2．Excellent compressive and tensile strength, good anti-corrosion and fire resistance.

Scope of application:1. concrete structures;

2. Water supply and drainage system;

3. Fire protection system and heating system.

Available Materials:1. Cold galvanized material;

2. Hot-dip galvanized material.

Design scope: 1. Equipment with gravity greater than 1.8kN in suspended pipes;

2. Pipe diameter DN65 or above domestic water supply and fire piping system.

Executive standard: Code for Seismic Design of Building Mechanical and Electrical Engineering (GB50981-2014)
