Multi-functional Partition Wall

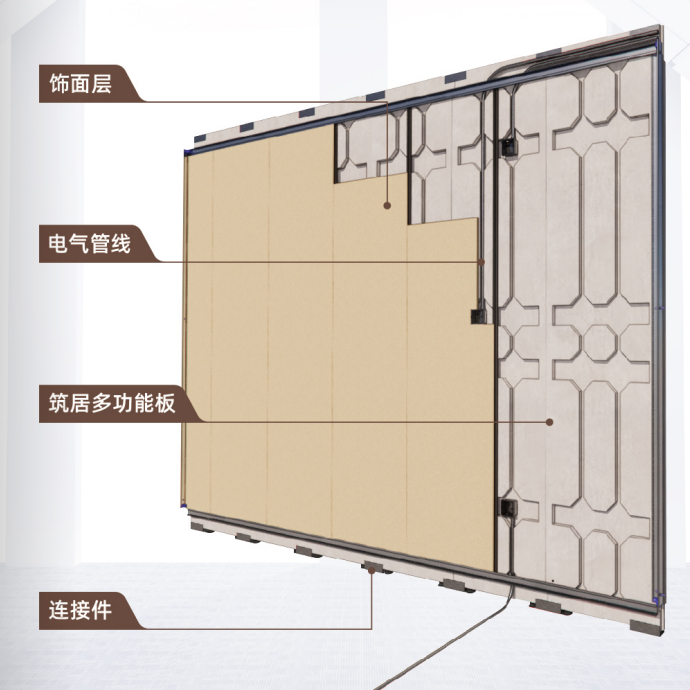

The multi-functional partition wall is manufactured as a whole, and the surface is equipped with a longitudinal and horizontal pipeline layout path, which meets the assembly requirements of non-masonry of the partition wall and the integration of internal partition wall and pipeline and decoration in the prefabricated building.

Product Information

Product features: 1. Reserve wiring space, easy to lay pipelines;

2．Prefabricated installation, fast installation speed, reverse detachable, recyclable, easy to maintain;

3．High load-bearing, single-point hanging heavy load > 1000N;

4．High sound insulation, the sound insulation of the 100 series finishing layer reaches 50dB after installation;

5．The material is environmentally friendly.

Product Range:1. 50 series: used for sewer pipes, flue encapsulation and other non-partition properties;

          2. 70 series: used for the position of water supply pipelines in the kitchen and bathroom, or the position of mechanical and electrical pipelines on one side in the living room;

          3. 100 series: used for arranging electromechanical pipelines on both sides of the room.

Scope of application:1. residential space;

2. School space;

3. Office space;

4. Hospital space;

5. Cultural tourism space;

6. Public Spaces.

Performance indicators:1. Areal density (dry): 50-60KG/m²;

2. Density level: B05/B06;

3. Intensity: 3.5Mpa;

4. Flexural load: 5000N;

5. Single-point hanging: 1000N;

6. Combustion performance: Class A (non-combustible material);

7. Air sound insulation: 50dB.
