Multi-purpose Flooring

The multi-functional ground module is suitable for both overhead and non-overhead ground practices, realizing the integrated installation of weak current pipelines and floor heating pipelines in multi-layer structures, and meeting the assembly requirements of dry construction floors and floors in prefabricated buildings

Product Information

Product features: 1. The open veneer structure is stable and compatible with a variety of finishing materials;

2．Pipeline separation, convenient pipeline layout;

3．High load-bearing, uniform load 15000N/㎡, concentrated load 4500N;

4．At the same time, it is suitable for overhead ground and non-overhead ground practices, dry assembly, and efficient assembly;

5．Structurally stable;

6．Efficient heating.

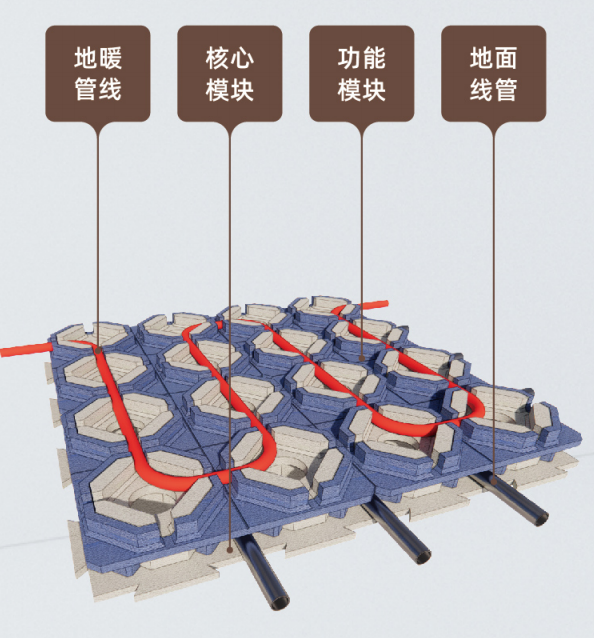

Product Structure:1. Core module: the basic unit of the multi-functional ground system, with high strength, directly bearing the ground load, restraining the ground weak current pipe system and water supply pipe, and realizing the separation of pipelines;

2. Functional module: the part of the floor heating pipe laid in the multi-functional ground system adopts the three-dimensional octagonal bridge design three-dimensional staggered to form an equidistant four-way floor heating path, and at the same time, the core module is locked and limited by the staggered layer to ensure the continuity and limit of each core module;

3. Supporting footing: the part of the multi-functional ground system that adjusts the height, the bottom anti-slip thread and the enlarged base area make the overall support of the ground more stable.

Scope of application:1. residential space;

2. School space;

3. Office space;

4. Hospital space;

5. Cultural tourism space;

6. Public Spaces.

Performance indicators:1. Combustion performance: B1 grade;

2. Apparent density: 197kg/m³;

3. Thermal Conductivity (25℃)：0.035W/(M·K)；

4. Point load: 4500N;

5. Water absorption(soaking 96h)：0.5%；

Dimensional stability (60±2°C, 48h): 0.8%.
